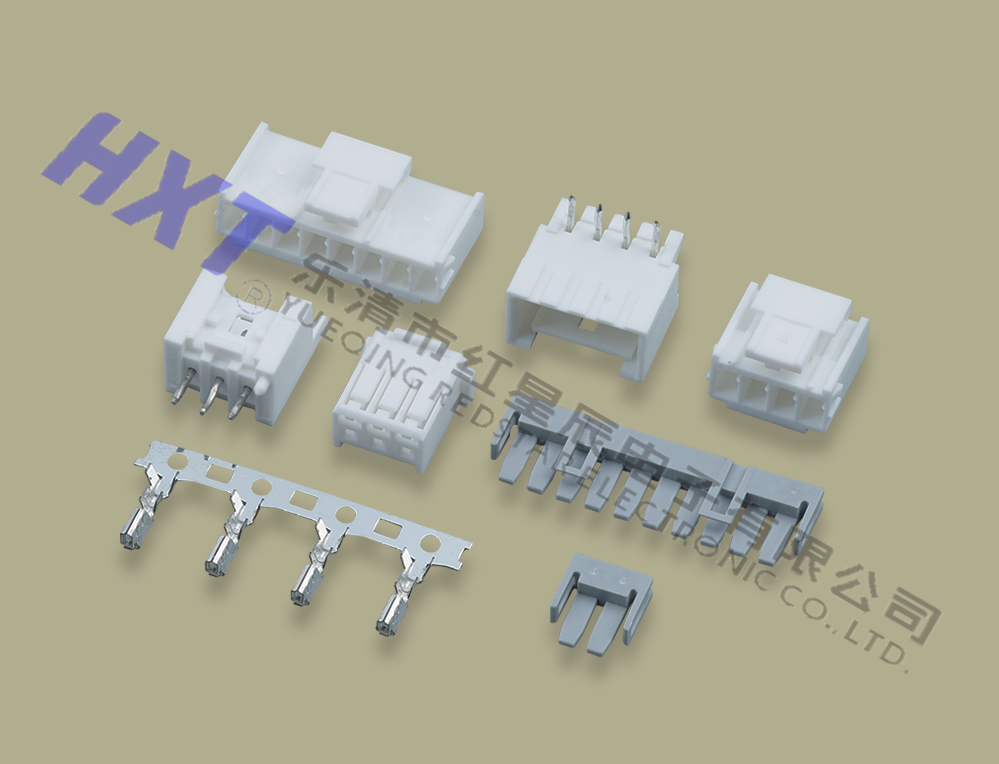

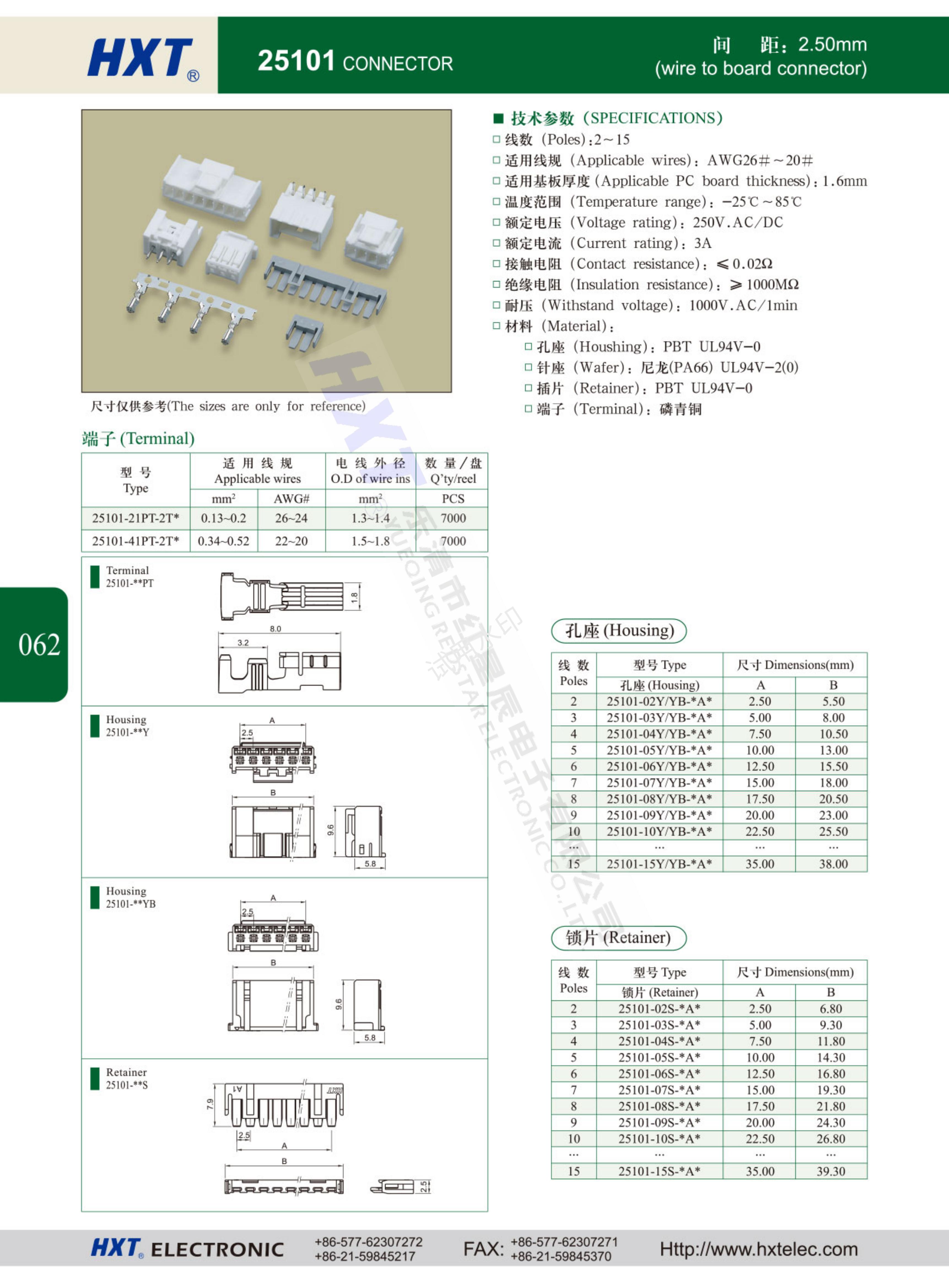

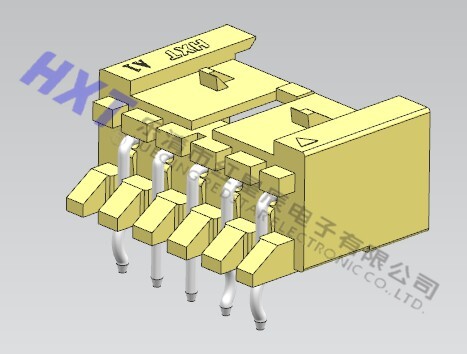

25101連接器

■技術(shù)參數(shù)(SPECIFICATIONS)

口線數(shù)(Poles):2~15

口適用線規(guī)(Applicable wires):AWG26#～20#

口適用基板厚度(Applicable PC board thickness):1.6mm

口溫度范圍(Temperature range):-25℃~85℃

口額定電壓(Voltage rating):250V.AC/DC

口額定電流(Current rating):3A

口接觸電阻(Contact resistance):≤0.022

口絕緣電阻(Insulation resistance):≥1000MΩ

口耐壓(Withstand voltage):1000V.AC/1min

口材料(Material):

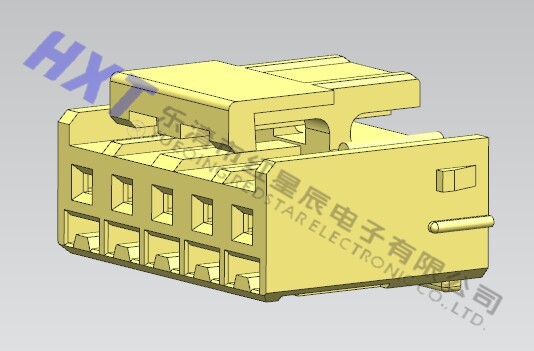

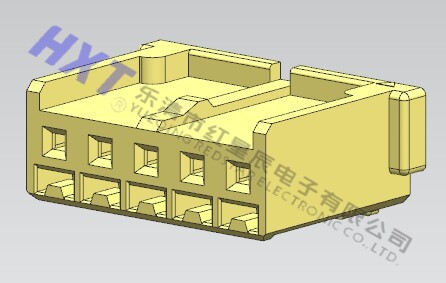

口孔座(Houshing):PBT UL94V-0

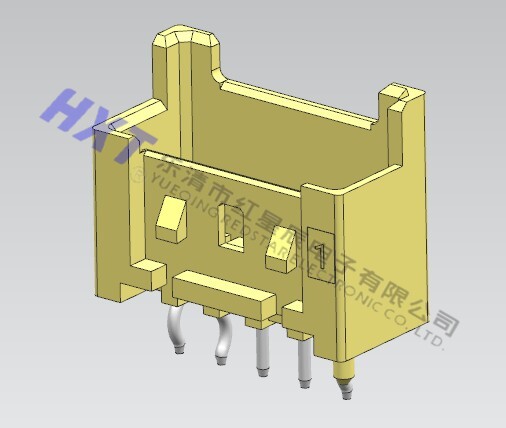

口針座(Wafer):尼龍(PA66)UL94V-2(0)

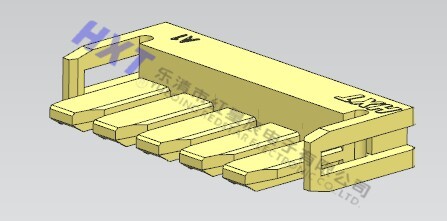

口插片(Retainer):PBT UL94V-0

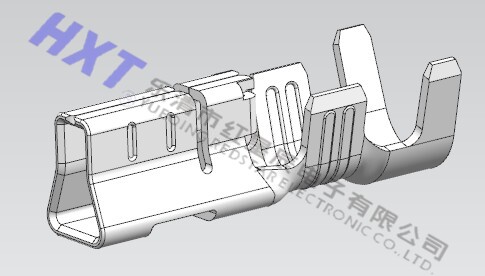

口端子(Terminal):磷青銅
